Examples
Advanced Topics
DeltaV Dialogue Chit-Chat

DeltaV Compatible Dialogues Agent

In this example we will create an agent on Agentverse which can handle multiple stocks price request in deltaV using Dialogues.

Guide

  • How to use Dialogues ↗️

Supporting documentation

  • Creating an hosted agent on agentverse ↗️
  • Registering agentverse functions ↗️
  • Field description for deltaV ↗️

Step 1: Create agent and Import Required libraries

Open Agentverse ↗️ (opens in a new tab), create a new agent and include the below script. We need to import predefined AI engine dialogue and Dialogue Messages:

# Import required libraries
import json
from ai_engine.chitchat import ChitChatDialogue
from ai_engine.messages import DialogueMessage
from uagents import Agent, Context, Model

Step 2: Define dialogues message

Each dialogue transition needs a separate message:

class InitiateChitChatDialogue(Model):
    """I initiate ChitChat dialogue request"""
    pass


class AcceptChitChatDialogue(Model):
    """I accept ChitChat dialogue request"""
    pass


class ChitChatDialogueMessage(DialogueMessage):
    """ChitChat dialogue message"""
    pass


class ConcludeChitChatDialogue(Model):
    """I conclude ChitChat dialogue request"""
    pass


class RejectChitChatDialogue(Model):
    """I reject ChitChat dialogue request"""
    pass

Step 3: Define functions to get symbol and stock price

Setup the functions making API calls to get ticker symbol and stock price:

    async def get_symbol(company_name):
    url = f"https://www.alphavantage.co/query?function=SYMBOL_SEARCH&keywords={company_name}&apikey={API_KEY}"

    response = requests.get(url)
    data = response.json()

    if 'bestMatches' in data and data['bestMatches']:
        first_match = data['bestMatches'][0]
        symbol = first_match['1. symbol']
        return symbol
    else:
        return f"No symbol found for {company_name}."

async def get_stock_price(symbol):
    url = f"https://www.alphavantage.co/query?function=TIME_SERIES_INTRADAY&symbol={symbol}&interval=1min&apikey={API_KEY}"

    response = requests.get(url)
    data = response.json()
    print(data)

    if 'Time Series (1min)' in data:
        latest_time = sorted(data['Time Series (1min)'].keys())[0]
        latest_data = data['Time Series (1min)'][latest_time]
        current_price = latest_data['1. open']
        return current_price
    else:
        return "Error: Unable to fetch stock price."

Step 4: instantiate the dialogues

chitchat_dialogue = ChitChatDialogue(
version="<YOU_CAN_SETUP_OWN_VERSION>", #example 0.11.1
storage=agent.storage,
)

Step 5: Define different event handlers for the dialogues

@chitchat_dialogue.on_initiate_session(InitiateChitChatDialogue)
async def start_chitchat(
    ctx: Context,
    sender: str,
    msg: InitiateChitChatDialogue,
):
    ctx.logger.info(f"Received init message from {sender} Session: {ctx.session}")
    # do something when the dialogue is initiated
    await ctx.send(sender, AcceptChitChatDialogue())


@chitchat_dialogue.on_start_dialogue(AcceptChitChatDialogue)
async def accepted_chitchat(
    ctx: Context,
    sender: str,
    _msg: AcceptChitChatDialogue,
):
    ctx.logger.info(
        f"session with {sender} was accepted. This shouldn't be called as this agent is not the initiator."
    )


@chitchat_dialogue.on_reject_session(RejectChitChatDialogue)
async def reject_chitchat(
    ctx: Context,
    sender: str,
    _msg: RejectChitChatDialogue,
):
    # do something when the dialogue is rejected and nothing has been sent yet
    ctx.logger.info(f"Received conclude message from: {sender}")


@chitchat_dialogue.on_continue_dialogue(ChitChatDialogueMessage)
async def continue_chitchat(
    ctx: Context,
    sender: str,
    msg: ChitChatDialogueMessage,
):
    # do something when the dialogue continues
    ctx.logger.info(f"Received message: {msg.user_message} from: {sender}")
    symbol = await get_symbol(msg.user_message)
    stock_price = await get_stock_price(symbol)
    final_string = f'The price for your {msg.user_message} is $ {stock_price}'
    try:
        await ctx.send(
            sender,
            ChitChatDialogueMessage(
                type="agent_message",
                agent_message=final_string
            ),
        )
    except EOFError:
        await ctx.send(sender, ConcludeChitChatDialogue())


@chitchat_dialogue.on_end_session(ConcludeChitChatDialogue)
async def conclude_chitchat(
    ctx: Context,
    sender: str,
    _msg: ConcludeChitChatDialogue,
):
    # do something when the dialogue is concluded after messages have been exchanged
    ctx.logger.info(f"Received conclude message from: {sender}; accessing history:")
    ctx.logger.info(ctx.dialogue)


agent.include(chitchat_dialogue, publish_manifest=True)


Step 6: Save the API key and Run the script in agentverse

To get the API key visit Alphavantage ↗️ (opens in a new tab) get the free API key and save new secret as API_KEY.

Step 7: Create an deltaV function and fill in the required details

The function details are as below:

  • Name: Stocks Price Dialogue.
  • AI description: This service helps user to check stocks or share price for more than one company.

Rest all details will be auto populated. Use deltaV to perform Agentverse Agent chit chat.

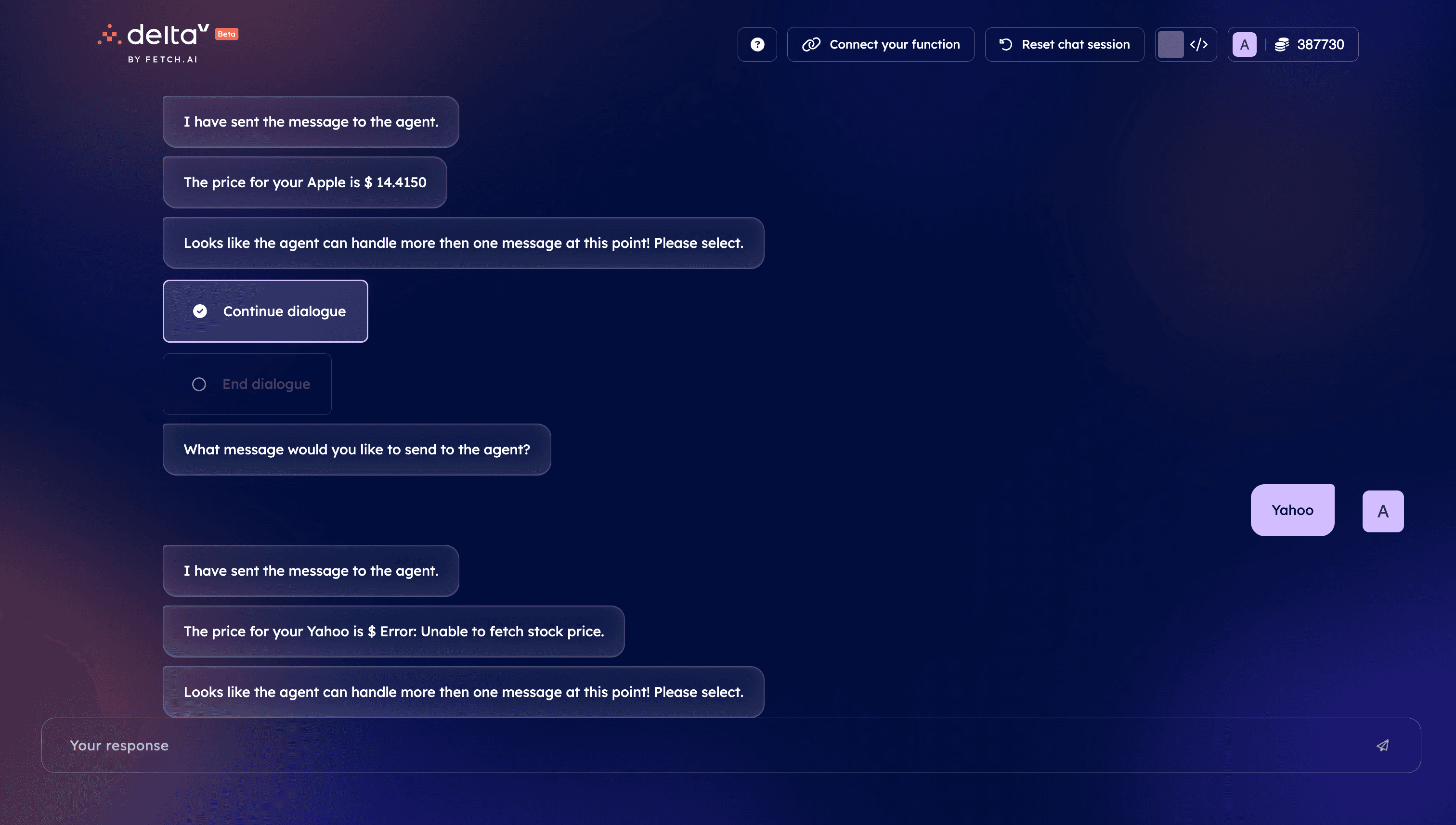

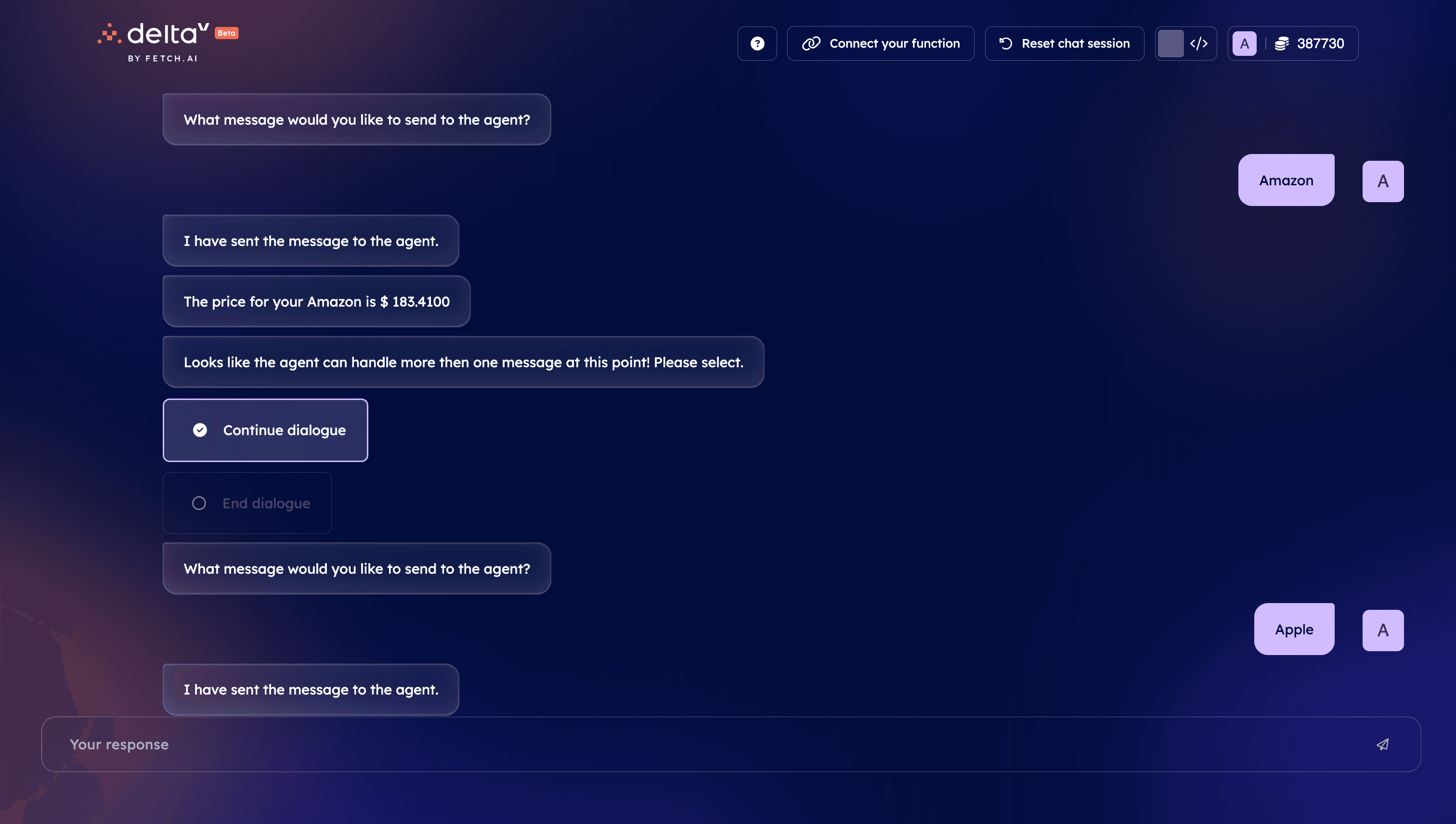

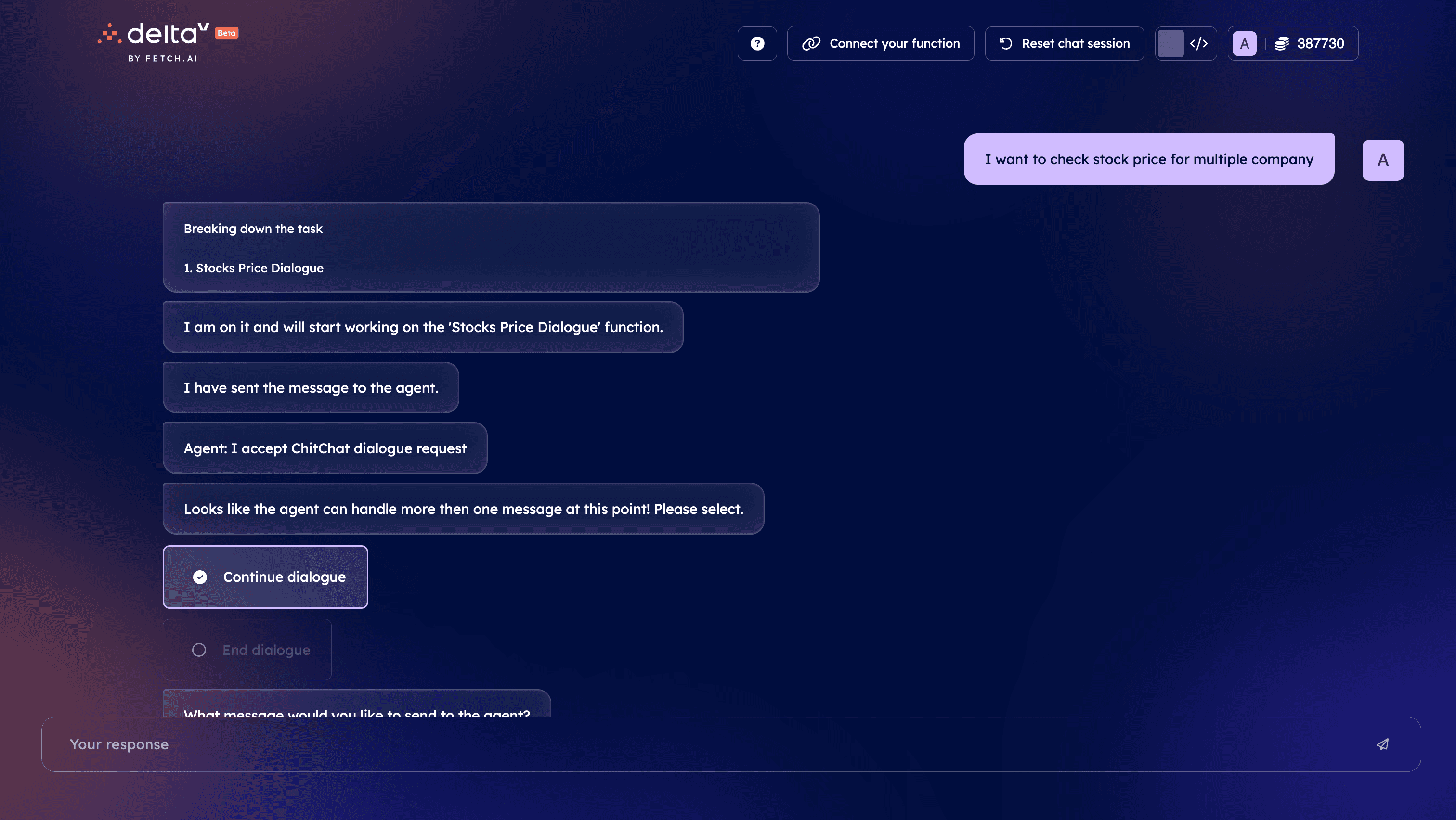

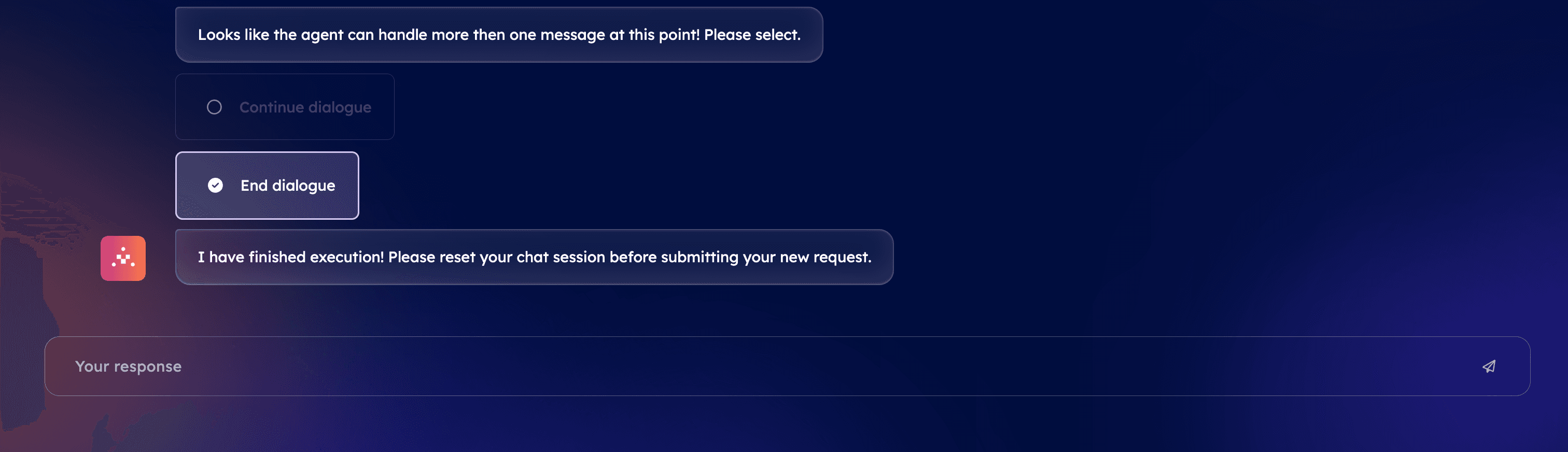

Expected output
